Visualizing Earthquake

Friday, Jul 19, 2019 about 664 words 4 min

According to USGS:

An earthquake is caused by a sudden slip on a fault. The tectonic plates are always slowly moving, but they get stuck at their edges due to friction. When the stress on the edge overcomes the friction, there is an earthquake that releases energy in waves that travel through the earth’s crust and cause the shaking that we feel.

Earthquake size can be very weak which can’t be felt to those which can destroy cities. The size of the earthquake is determind by the magnitude of the earthquake in seismic scale.

/images/visual_earthquake/earthquake.jpg

In this blog, We will create an interactive visualization of the 20 largest earthquakes in the world. We will use the data from Earthquake.usgs.gov, US government website about geological research. The data is extracted using rvest package(web scraping package). We will use highcharter package to create the visualization.

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24


# loading library
library(rvest)
library(tidyverse)
library(highcharter)
library(geojsonio)
library(geojsonlint)
library(sp)
library(jsonlite)

# loading data
# webscraping using rvest
url <- "https://earthquake.usgs.gov/earthquakes/browse/largest-world.php"
earthquake <- url %>%
  html() %>%
  html_nodes(xpath = "/html/body/main/div/div/table") %>%
  html_table()
earthquake <- earthquake[[1]]

earthquake <- rename(earthquake, lat = Latitude, lon = Longitude)
earthquake <- select(earthquake, -"")

# convert gis cordinates to longitude and latitudes
earthquake$lat <- as.numeric(char2dms(earthquake$lat, chd = "°"))
earthquake$lon <- as.numeric(char2dms(earthquake$lon, chd = "°"))

Here is the look of data that i will use to create the visualization of the earthquake.It has Name of the earthquake,magnitude,location,time,date,logitude and latitude of the earthquake.

Mag	Location	Alternative Name	Date (UTC)	Time (UTC)	lat	lon	References
9.5	Bio-Bio, Chile	Valdivia Earthquake	1960-05-22	19:11	-38	-73	Kanamori & Anderson, 1975
9.2	Southern Alaska	1964 Great Alaska Earthquake, Prince William Sound Earthquake, Good Friday Earthquake	1964-03-28	03:36	60	-147	Kanamori & Anderson, 1975
9.1	Off the West Coast of Northern Sumatra	Sumatra-Andaman Islands Earthquake, 2004 Sumatra Earthquake and Tsunami, Indian Ocean Earthquake	2004-12-26	00:58	3	95	Duputel et al., 2012
9.1	Near the East Coast of Honshu, Japan	Tohoku Earthquake	2011-03-11	05:46	38	142	Duputel et al., 2012
9.0	Off the East Coast of the Kamchatka Peninsula, Russia	Kamchatka, Russia	1952-11-04	16:58	52	159	Kanamori, 1976
8.8	Offshore Bio-Bio, Chile	Maule Earthquake	2010-02-27	06:34	-36	-72	Duputel et al., 2012

In this visualization we will also use data of the tectonic plates of the earth. We will be using geojson of the earthmap and the tectonic to create the map.The data about the tectonic plates and the world map is taken from highcharter example.

 1
 2
 3
 4
 5
 6
 7
 8
 9
10


getContent <- function(url) {
  library(httr)
  content(GET(url))
}

world <- getContent("https://raw.githubusercontent.com/johan/world.geo.json/master/countries.geo.json")
# is text
world <- jsonlite::fromJSON(world, simplifyVector = FALSE)

plates <- getContent("http://cedeusdata.geosteiniger.cl/geoserver/wfs?srsName=EPSG%3A4326&typename=geonode%3Amundo_limites_placas&outputFormat=json&version=1.0.0&service=WFS&request=GetFeature")

The earthquake dataframe also need to be changed to geojson which is done using the geojson_json() from geojsonio package.

Finally we will use the follwing code to create interactive visualization of the 20 largest earthquake in the world.

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23


highchart(type = "map") %>%
  hc_chart(backgroundColor = "#ccc") %>%
  hc_add_series(
    mapData = world, showInLegend = FALSE, nullColor = "#eee",
    borderWidth = 0
  ) %>%
  hc_add_series(
    data = plates, type = "mapline", lineWidth = 1, zIndex = -1, geojson = TRUE,
    color = "blue", name = "Plates",
    tooltip = list(pointFormat = "{point.properties.TIPO}")
  ) %>%
  hc_add_series(type = "mappoint", data = earthquake_geojson,
  color = hex_to_rgba("#ff4444", 0.6), name = "Earthquake",
  size = "110%", tooltip = list(pointFormat = "Location : {point.properties.Location} <br>
                Magnitude : {point.properties.Mag} <br>
                Date : {point.properties.Date (UTC)},
                {point.properties.Time (UTC)}")) %>%
  hc_tooltip(
    backgroundColor = "#f2e3b8",
    borderWidth = 2
  ) %>%
  hc_title(text = "20 Largest Earthquakes in the World") %>%
  hc_mapNavigation(enabled = TRUE)

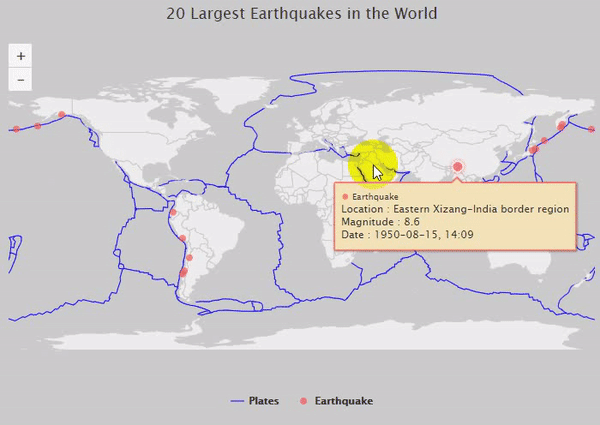

In this visualization we can see almost all of the earthquake occurs on the intersection of two tectonic plates. We can use mouse to hover over the point and get details about the earthquake through tooltips.
